Three Modalities. One Platform. Total Clarity.

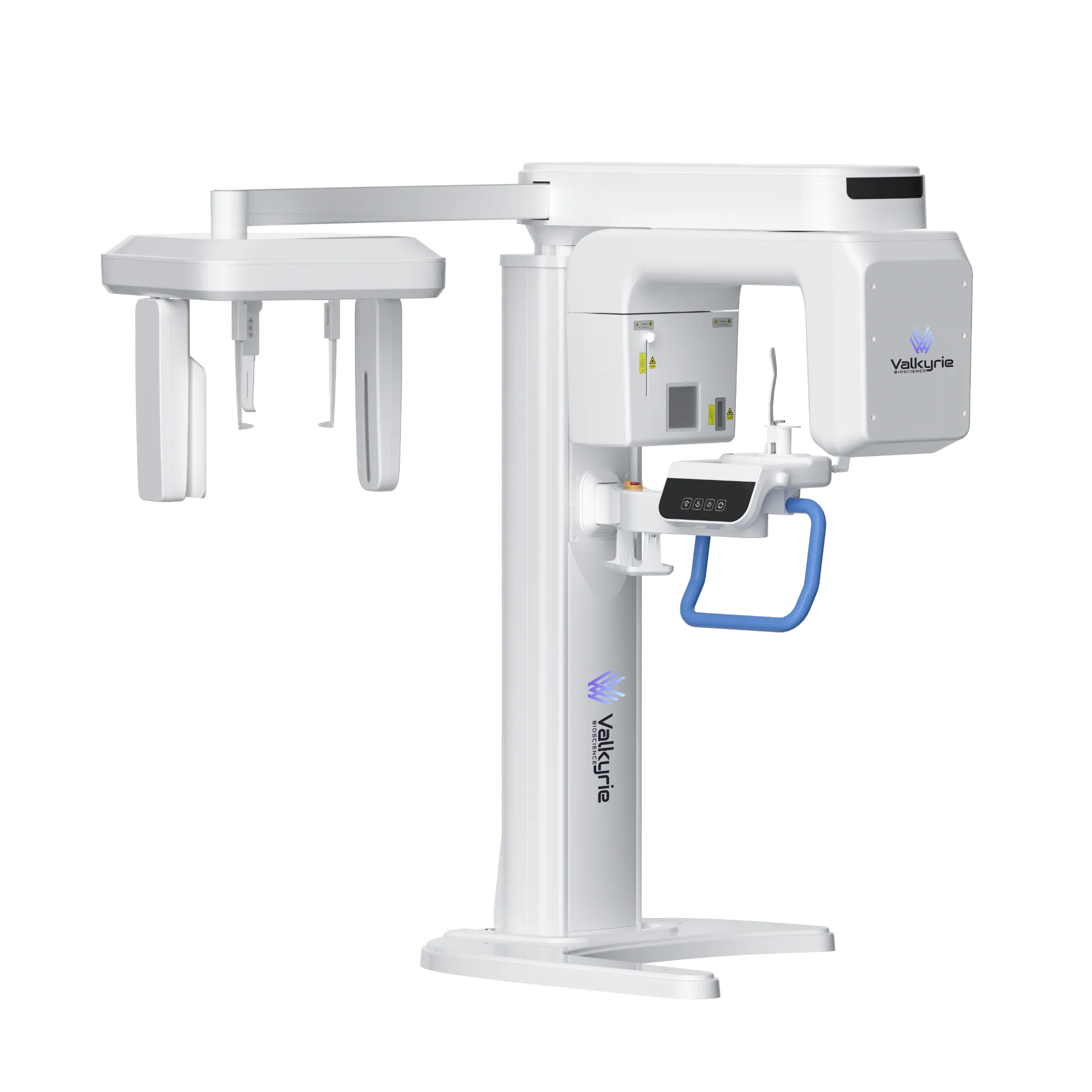

Introducing FinScan 350^™ by Valkyrie BioScience — a fully integrated CBCT, Panoramic, and Cephalometric imaging system designed to deliver high-resolution diagnostic detail across the most clinically demanding workflows.

Diagnostic Versatility. Engineered Precision.

FinScan 350 brings 3D Cone Beam CT, panoramic, and cephalometric imaging together in a single chairside-ready platform. Built on a flat-panel digital detector with CsI + TFT technology, it delivers the resolution clinicians rely on for confident diagnosis — from early caries detection and endodontic evaluation to implant planning, airway analysis, and orthodontic case workup.

What FinScan 350 Delivers

3-in-1 imaging system

CBCT, Panoramic, and Cephalometric in one unit — no second machine, no second room.

Selectable field of view

4×4 cm, 8×8 cm, and 16×10 cm FOV options — from a single tooth to full arch and TMJ.

High-resolution flat panel detection

CsI + TFT digital flat-panel detector with 100 µm pixel pitch for sharp, low-dose imaging.

Tunable voxel resolution

Five voxel sizes from 100 µm to 300 µm — match resolution to indication and dose target.

Dedicated cephalometric channel

A separate CsI + CMOS line-formation detector built specifically for ceph capture — not a repurposed sensor.

From Single Tooth to Full Arch

FinScan 350 adapts to the case in front of you. A 4×4 cm field of view focuses on endodontic detail or a single implant site. The 8×8 cm option captures a quadrant or full arch for restorative and implant planning. And the 16×10 cm field opens the view to full dentition, TMJ, and airway analysis — all from the same system.

Technical Specifications

A snapshot of the specs that matter most. Full technical documentation available on request.

X-Ray Generator

Specification	Value
Tube voltage	60–100 kV (5 kV step), ±10%
Tube current	6–10 mA (1 mA step), ±20%
Max. electrical output	1.0 kW
Focal spot	0.5 mm

Imaging Capabilities

Specification	Value
Imaging modes	CBCT, Panoramic, Cephalometric
Field of View (FOV)	4×4 cm, 8×8 cm, 16×10 cm
Voxel size	100, 150, 200, 250, 300 μm

CBCT & Panoramic Detector

Specification	Value
Detector type	Flat Panel Digital Detector
Sensor technology	CsI + TFT array
Image pixel size	100 μm × 100 μm
Photodiode area	153.6 mm × 153.6 mm

Cephalometric Detector

Specification	Value
Detector type	Line formation digital detector
Sensor technology	CsI + CMOS array
Image pixel size	100 μm
Photodiode area	225.2 mm × 6.8 mm

Electrical Power Requirements

Specification	Value
Nominal mains voltage	AC 100–120 V
Input power frequency	50 / 60 Hz
Nominal current	14 A
Power capacity	2.0 kW

‍

Full technical specifications and installation requirements are available on request.

Built for Clarity. Backed by Valkyrie.

FinScan 350 reflects Valkyrie BioScience’s commitment to advancing dentistry through clarity, intelligence, and innovation. One platform. Three modalities. A clearer path to confident diagnosis.

Request a Demo

Contact Sales

Frequently Asked Questions

Everything you need to know about FinScan 350.

Who is Valkyrie BioScience?

Valkyrie is a healthcare technology company focused on transforming dental diagnostics through advanced imaging, AI, and cloud-based tools.
